Advantage

✅ Small requirement from utility (Less than 300KW power)

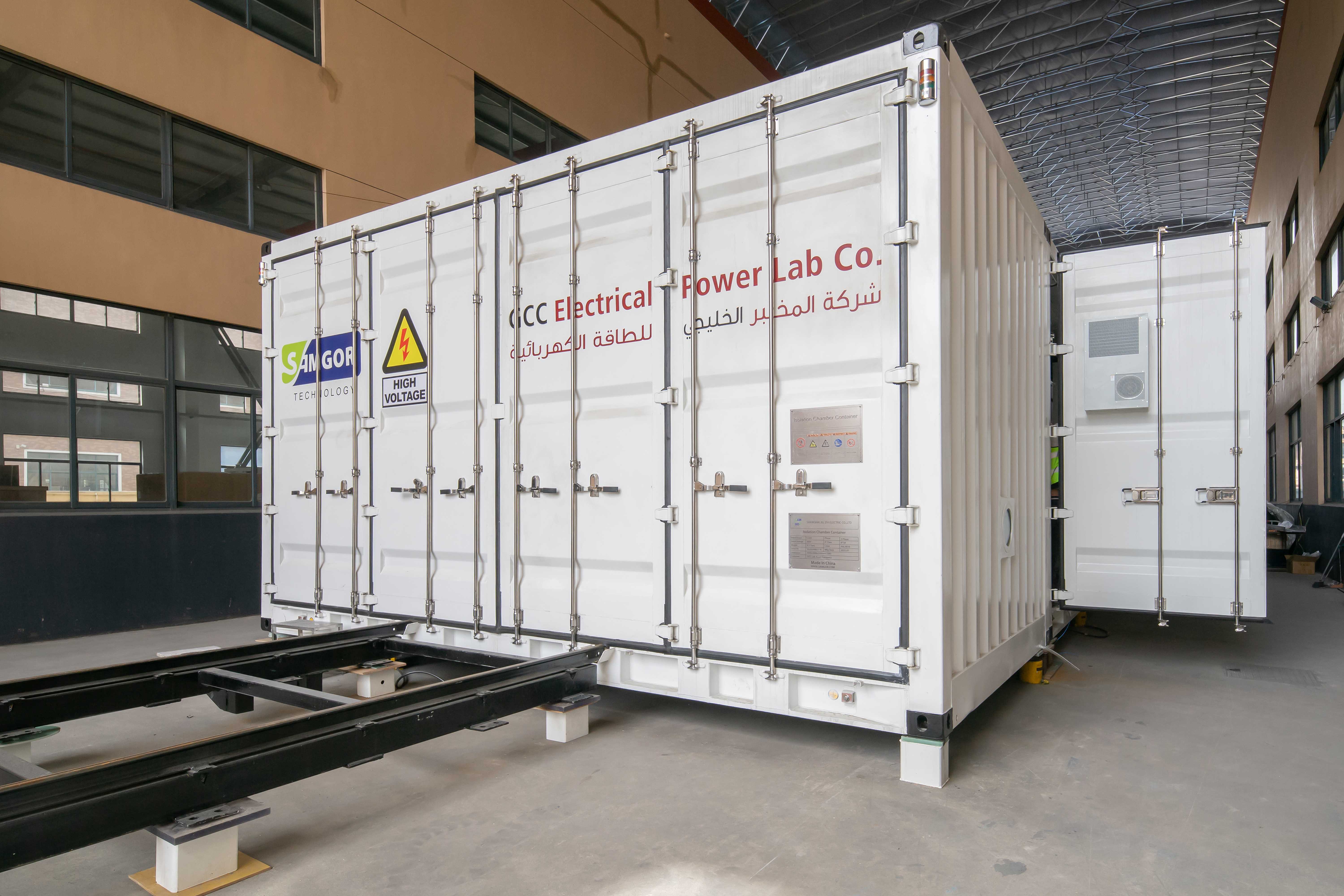

✅ No civil construction /Container Base

✅ Lower cost, easy maintenance

✅ Short production time /quick installation

✅ Multi-functions in one test bay

✅ Arbitrary waveform generator

✅ CVCV SC

Application

✅ Transformer Short Circuit Test (dynamic-thermal stability)-lEC60076-5

✅ Reactor in Series Short Circuit Test (dynamic-thermal stability)-lEC60076-6

✅ Potential Transformer Short Circuit Test (dynamic-thermal stability)-lEC61869-3

✅ Current Transformer Short Circuit Test (dynamic-thermal stability)-lEC61869-2

✅ Cable Short Circuit Test (dynamic-thermal stability)-lEC60502-4

✅ Short-time Withstand Current Test & Peak Withstand Current Test for HV Switch-gear Cabinet, Ring Main Unit, Cable Branch Box, Post-mounted Switchgear          lsolationSwitch,circuit Breaker-lEC62271

✅ Short-time Withstand Current Test & Peak Withstand Current Test for Box Type Substation Main Circuit and Grounding Circuit (American Model & European Mod-el)-IEC62271 8.Short Circuit Withstand Strength Test for LV Switchgear Cabinet, 0.4kV CableBranch Box,JP Cabinet-lEC61439-1/IEC61439-12

✅ Breaking-making Test/Limit Current Withstand Test/Overload Test/Electric LifeTest for LV Switch-lEC60947/UL489

✅ Protective Clothing against the Thermal Hazards of an Electric Arc-lEC61482-1

Advantage

✅ Isolation from the grid,no pollution to the grid

✅ Compact design, single cabinet can generate power up to 6MVA

✅ Up to three units parallel working or intergrade to three phase output to 18MVA

✅ Standard AC waveform output,some offset waveform output,and the customized wave- form output

✅ No attenuation of voltage in short circuit,some harmonic can be generated to simulate the real grid

✅ Peak factor adjustable by software

Application

✅Transformer Short Circuit Test (dynamic-thermal stability)-lEC60076-5

✅Potential Transformer Short Circuit Test (dynamic-thermal stability)-lEC61869-3

✅Current Transformer Short Circuit Test (dynamic-thermal stability)-lEC61869-2

✅Cable Short Circuit Test (dynamic-thermal stability)-lEC60502-4

✅Short Circuit Withstand Strength Test for LV Switchgear Cabinet, 0.4kV CableBranch Box,JP Cabinet-lEC61439-1/IEC61439-12

✅Breaking-making Test/Limit Current Withstand Test/Overload Test/Electric LifeTest for LV Switch-lEC60947/UL489

✅Protective Clothing against the Thermal Hazards of an Electric Arc-lEC61482-1
